Magnetic Track Lighting Systems - 48V LED Profiles & Fittings

Types of Magnetic Track Lighting Systems

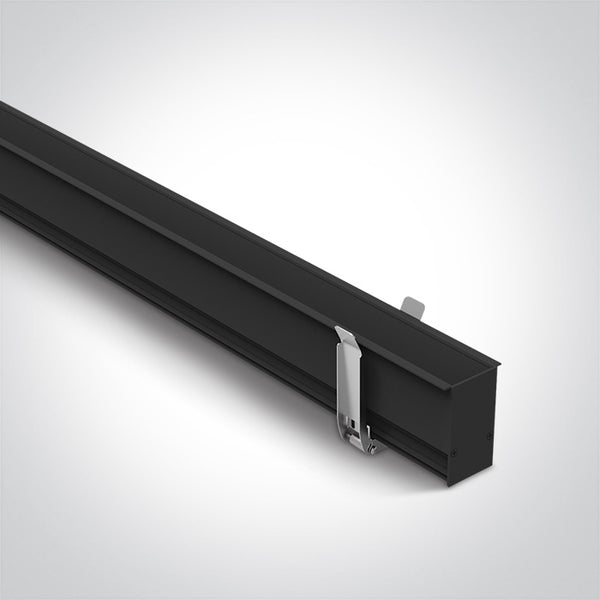

Recessed Magnetic Track Lighting

Recessed magnetic track systems integrate seamlessly into your ceiling, creating a clean, minimal aesthetic. The track profile sits flush with the ceiling surface, with only a narrow aperture visible. This installation method is ideal for modern interiors, art galleries, and retail spaces where you want the lighting to remain discreet while maintaining maximum flexibility. Recessed systems typically require a ceiling void of 75-80mm depth for installation. Despite being hidden within the ceiling structure, the magnetic fittings remain fully adjustable and can be repositioned anywhere along the track length.

Surface-Mounted Magnetic Track

Surface-mounted systems fix directly to your ceiling or wall surface using brackets provided with the track. These profiles offer the fastest installation method and work perfectly where recessing isn't possible or desired. The exposed track becomes a design feature in its own right, with sleek aluminium profiles available in black, white, or metallic finishes. Surface mounting is particularly popular in industrial-style interiors, loft conversions, and spaces with solid ceilings. Installation typically takes just a few hours for a standard room configuration.

Suspended Magnetic Track Systems

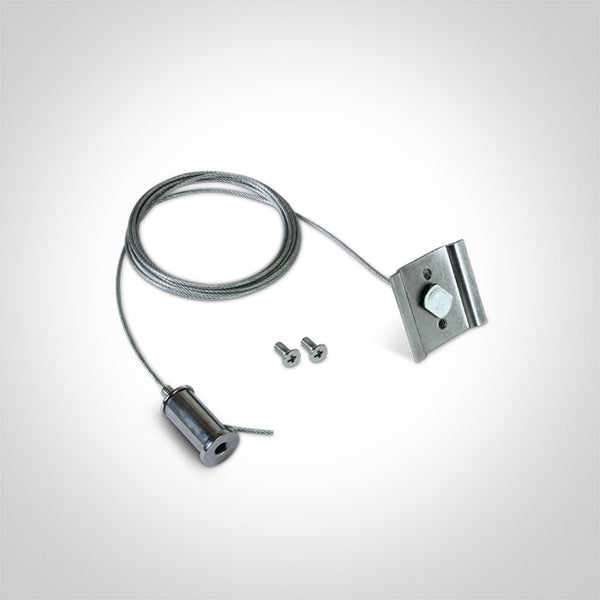

Suspended track lighting hangs from the ceiling using cables or rods, typically at heights ranging from 200mm to 2000mm below the ceiling line. This installation type suits spaces with high ceilings, such as retail showrooms, exhibition spaces, and commercial offices. Suspended systems create dramatic lighting effects and can delineate different zones within open-plan spaces. The magnetic track can be suspended horizontally or even create flowing lines that transition from ceiling to wall, offering unprecedented design flexibility.

How to Choose the Right Magnetic Track System

Space Requirements & Ceiling Height

Consider your ceiling height when selecting a magnetic track system. For ceilings below 2.4m, recessed or slim surface-mounted profiles work best to avoid the lighting feeling too dominant. Higher ceilings (3m+) benefit from suspended systems that bring light closer to working surfaces. Measure your ceiling void if planning recessed installation—you'll need 75-80mm clear depth for most profiles.

Power Supply & Load Calculations

48V magnetic track systems require a compatible driver to convert mains voltage (230V) to a safe 48V DC current. Calculate your total wattage by adding up all planned light fittings—your driver capacity should exceed this by 20% for optimal performance and longevity. A typical 100W driver supports approximately 8-10 magnetic spotlights, while larger installations may require 200W or multiple drivers strategically positioned along longer track runs.

Profile Size Selection

Magnetic tracks come in different profile widths, typically ranging from 20mm to 48mm. Slimmer profiles (20-27mm) suit residential and boutique commercial spaces where minimalism is key. Wider profiles (40-48mm) accommodate higher-powered fittings and longer track runs, making them ideal for retail environments and spaces requiring higher light output. Consider whether you'll need to run the track around corners or down walls—this affects your profile and connector selection.

Magnetic Track Lighting vs Traditional Track Systems

Installation Flexibility & Speed

Traditional track lighting requires fittings to be twisted and locked into position, often involving small adapters and precise alignment. Magnetic track lighting eliminates these complications—fittings simply snap onto the track magnetically and begin working instantly. There are no rotation locks, no adapter selection, and no electrical polarity concerns. For installers, this means significantly faster fitting times and virtually no scope for installation errors.

Energy Efficiency Advantages

Operating at 48V rather than 230V mains voltage, magnetic track systems achieve approximately 10% greater energy efficiency. This improvement comes from centralised voltage conversion at the driver level, rather than individual transformations at each light fitting. Over time, especially in commercial installations running lights for extended hours, these efficiency gains translate into measurable cost savings and reduced environmental impact.

Repositioning & Future Flexibility

With traditional track systems, repositioning spotlights often requires turning off power, carefully aligning the fitting with track contacts, and testing the connection. Magnetic systems allow instant repositioning by simply sliding fittings along the track—even while powered on (though we recommend switching off for safety). This flexibility proves invaluable in retail environments where display layouts change regularly, or in homes where lighting needs evolve over time.

Aesthetic Considerations

Modern magnetic track systems feature incredibly slim profiles, some as narrow as 20mm wide. Traditional track systems typically measure 35-50mm wide with visible contact strips. The magnetic system's clean lines and ability to transition smoothly from horizontal to vertical runs create a more architecturally integrated appearance. The absence of visible electrical contacts and adapter bulk gives magnetic systems a distinctly contemporary look that appeals to design-conscious clients.

Installation & Power Supply Guide for 48V Magnetic Track

Power Supply Selection

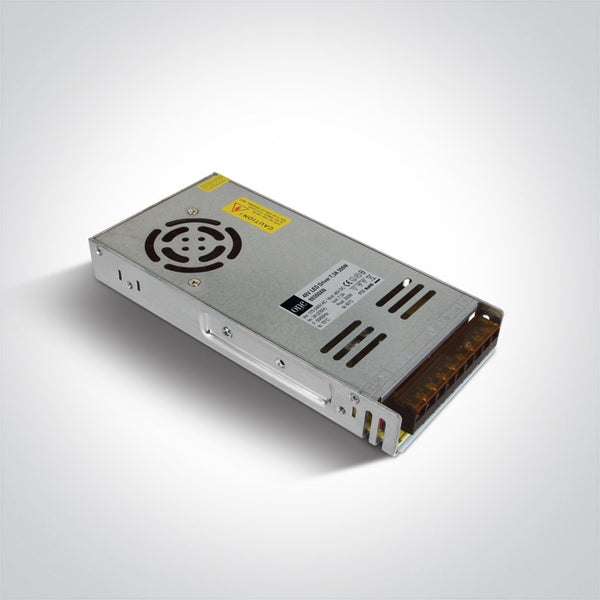

Every magnetic track system requires a 48V DC driver (power supply) matched to your total lighting load. Drivers are available in various capacities—typically 60W, 100W, 150W, and 200W. Calculate required capacity by totalling the wattage of all magnetic fittings you plan to install, then select a driver rated at least 20% higher. For example, if you're installing eight 8W spotlights (64W total), choose a 100W driver for safe operation with headroom for future additions.

Track Limitations & Maximum Lengths

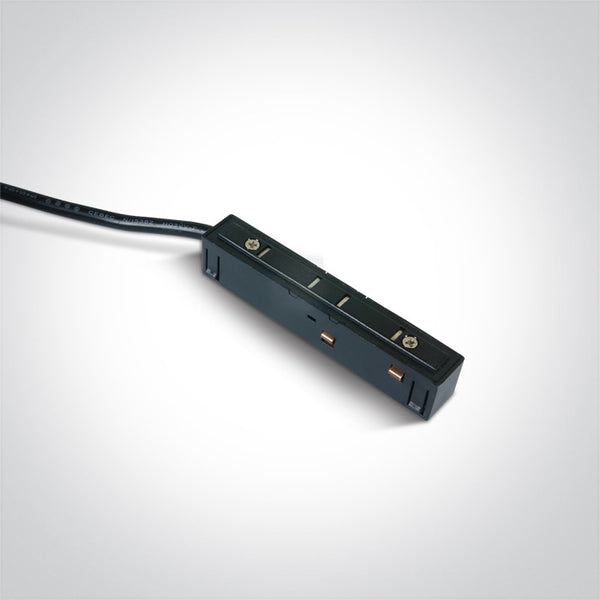

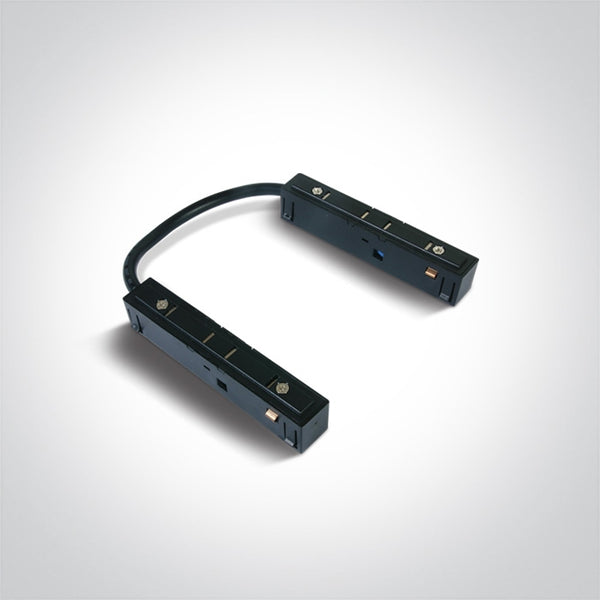

From a single driver connection point, most magnetic track systems support up to 10 metres of track length. Longer installations require multiple drivers or strategically positioned connection points. When planning your layout, remember that track can be cut to exact lengths on-site using a hacksaw. Standard track sections come in 1m and 2m lengths and can be joined using mechanical connectors paired with electrical jump leads.

DIY vs Professional Installation

Surface-mounted magnetic track systems are well within the capabilities of competent DIY installers. The low voltage operation provides inherent safety advantages. However, the mains connection to the driver must comply with UK electrical regulations—this stage typically requires a qualified electrician unless you're connecting to an existing switched supply. Recessed installations demand more extensive ceiling work and electrical certification, making professional installation advisable for these configurations.

Frequently Asked Questions About Magnetic Track Lighting

Can magnetic track lighting be dimmed?

Yes, most magnetic track systems support dimming when paired with compatible drivers and appropriate control systems. Trailing-edge dimmers work with many 48V drivers, while advanced installations can utilise DALI or wireless control systems for individual fitting control and scene programming.

What's the maximum track length from one power supply?

Standard installations support up to 10 metres of track from a single driver connection point. Longer runs require additional drivers or junction points. Always consult manufacturer specifications for your specific system.

Do I need an electrician for installation?

The low-voltage magnetic track components can be installed by competent DIYers. However, connecting the driver to mains power (230V) must comply with UK electrical regulations and typically requires certification by a qualified electrician.

Are magnetic track systems suitable for bathrooms?

Magnetic track systems are typically rated IP20 for dry indoor use. Bathroom installations require IP44 or higher rated systems specifically designed for zones with moisture exposure.

Can I mix different types of magnetic fittings on one track?

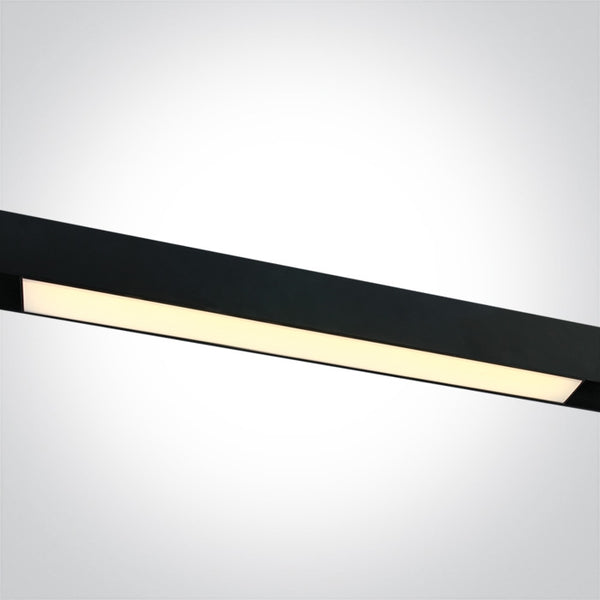

Yes, magnetic tracks support various fitting types—spotlights, pendants, and linear sections—all on the same track run, provided total wattage stays within driver capacity.
